Idlers are essential components of a belt conveyor system, providing support for the belt and its load while reducing friction and preventing sagging. Proper selection of idlers ensures smooth operation, minimal wear, and long-term reliability. Belt conveyors rely on various idler types, each designed for specific positions and functions along the conveyor.

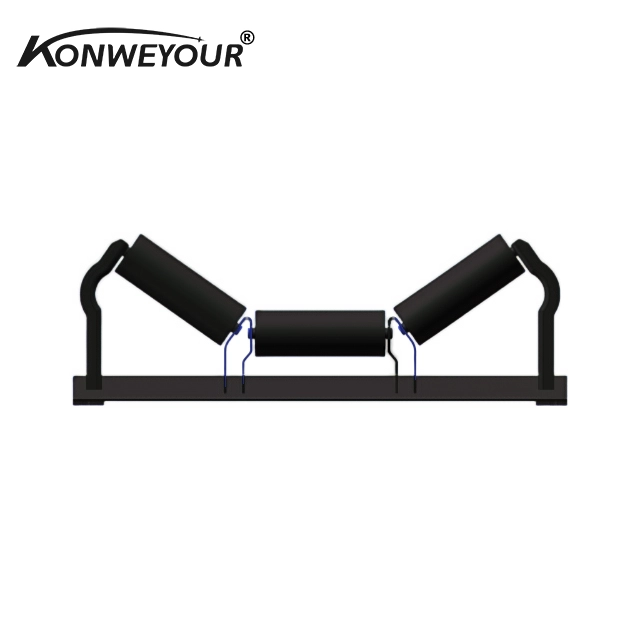

The most common type is the troughing idler, which supports the loaded belt in a trough shape, allowing bulk materials such as coal, gravel, or grain to stay centered and stable during transport. Troughing idlers typically have three rollers—a bottom roller and two side rollers—angled to form a V-shaped profile.
Return idlers are installed on the return side of the belt, supporting the empty belt and maintaining alignment. These idlers usually feature a single roller and help reduce belt wear and prevent sagging, ensuring smooth motion back to the loading point.
For curves and bends, impact idlers are designed to absorb shock at loading points, where materials drop heavily onto the belt. They often have heavy-duty frames and cushioned rollers to minimize belt damage and reduce maintenance costs.
Step or self-aligning idlers feature a floating or adjustable roller assembly, helping the belt automatically track and center itself. These idlers prevent misalignment, reduce spillage, and protect the belt edges from excessive wear.
Pipe or drum idlers are cylindrical rollers used for long-distance conveyors or specialized applications, providing greater load support and stability for wide or heavy belts.
Idlers are typically made from steel or galvanized materials with sealed bearings to resist dust, moisture, and harsh conditions. Proper idler selection—including type, size, and spacing—ensures efficient belt operation, longer belt life, and reduced downtime.
By integrating the right combination of troughing, return, impact, and self-aligning idlers, conveyor systems can achieve smooth material flow, enhanced durability, and high operational efficiency across diverse industrial applications.
