Pulleys are critical components of a belt conveyor system, providing the driving force, proper tension, and precise belt tracking required for smooth and efficient material handling. Each pulley type performs a specific function to keep the conveyor operating reliably in industries such as mining, manufacturing, logistics, and food processing. Understanding the different pulleys helps in selecting the right design for optimal performance and long service life.

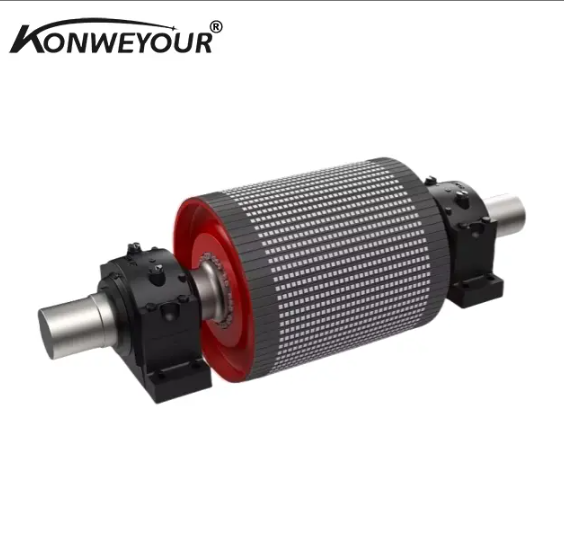

The drive pulley—also called the head pulley—is the primary power source. Connected to the motor and gearbox, it transmits torque to the conveyor belt, pulling material along the system. To improve grip and reduce slippage, drive pulleys are often lagged with rubber or ceramic coatings.

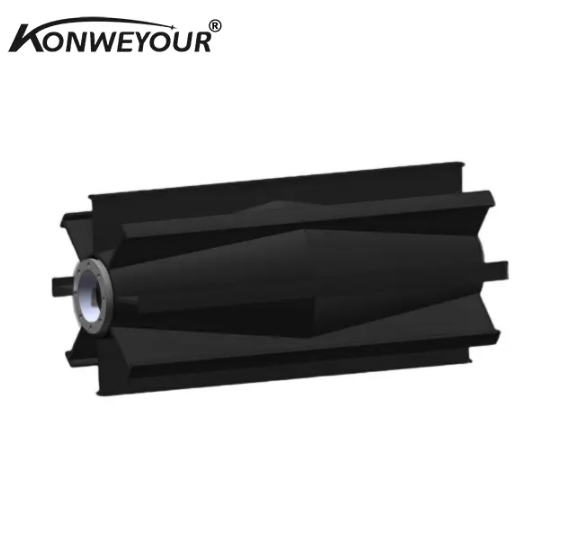

At the opposite end of the conveyor is the tail pulley, which redirects the belt back to the drive pulley while maintaining tension. Tail pulleys typically have a smooth or winged design to shed material and reduce buildup.
Snub pulleys are strategically placed near the drive pulley to increase the belt’s wrap angle, enhancing traction and power transmission. Take-up pulleys or tension pulleys adjust belt length and maintain the correct tension, preventing sagging and ensuring consistent tracking during operation.
Bend pulleys change the direction of the belt or route it through complex conveyor configurations without transferring power. Idler pulleys provide support and help guide the belt on its return path, reducing friction and wear. In some systems, crowned pulleys feature a slightly convex surface to help the belt self-center, minimizing misalignment.
Available in materials such as heavy-duty steel, stainless steel, or aluminum, each pulley type is engineered to withstand specific loads, speeds, and environmental conditions. By combining these pulleys correctly, belt conveyor systems achieve maximum efficiency, reduced maintenance, and long-lasting performance across diverse industrial applications.
